Next Stage. What to do with Constants

In our equations we have regarded $x$ as growing,
and as a result of $x$ being made to grow $y$ also
changed its value and grew. We usually think of $x$
as a quantity that we can vary; and, regarding the
variation of $x$ as a sort of *cause*, we consider the resulting
variation of $y$ as an *effect*. In other words, we
regard the value of $y$ as depending on that of $x$. Both
$x$ and $y$ are variables, but $x$ is the one that we operate
upon, and $y$ is the “dependent variable.” In all the
preceding chapter we have been trying to find out
rules for the proportion which the dependent variation
in $y$ bears to the variation independently made in $x$.

Take as a simple experiment this case:

These values we tabulate as follows:

$x$ | $0 $ | $1 $ | $2 $ | $3 $ | $4 $ | $5 $ | $-1 $ | $ -2 $ | $ -3 |

$y$ | $0 $ | $7 $ | $28 $ | $63 $ | $112 $ | $175 $ | $7 $ | $ 28$ | $ 63 |

$\dfrac{dy}{dx}$ | $0 $ | $14 $ | $28 $ | $42 $ | $56 $ | $70 $ | $-14$ | $ -28$ | $ -42 |

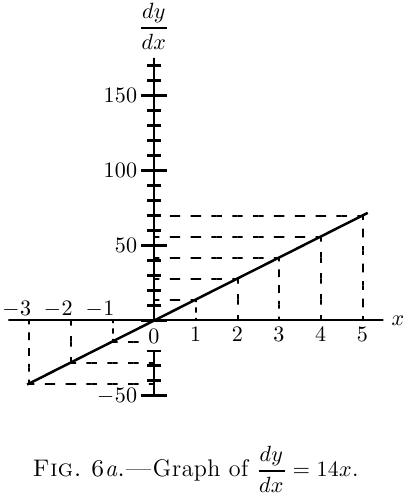

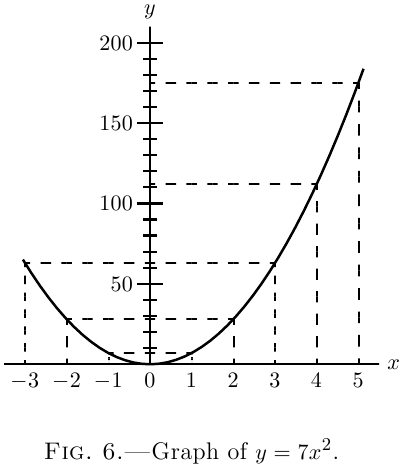

Now plot these values to some convenient scale, and we obtain the two curves, Fig. 6 and Fig. 6a.

Carefully compare the two figures, and verify by
inspection that the height of the ordinate of the
derived curve, Fig. 6a, is proportional to the *slope* of
the original curve, (See here about *slopes* of curves.)
Figure 6, at the corresponding value
of $x$. To the left of the origin, where the original
curve slopes negatively (that is, downward from left
to right) the corresponding ordinates of the derived
curve are negative.

Now if we look back at here, we shall see that simply differentiating $x^2$ gives us $2x$. So that the differential coefficient of $7x^2$ is just $7$ times as big as that of $x^2$. If we had taken $8x^2$, the differential coefficient would have come out eight times as great as that of $x^2$. If we put $y = ax^2$, we shall get \[ \frac{dy}{dx} = a × 2x. \]

If we had begun with $y = ax^n$, we should have had
$\dfrac{dy}{dx} = a×nx^{n-1}$. So that any mere multiplication by
a constant reappears as a mere multiplication when
the thing is differentiated. And, what is true about
multiplication is equally true about *division*: for if,
in the example above, we had taken as the constant $\frac{1}{7}$
instead of $7$, we should have had the same $\frac{1}{7}$ come
out in the result after differentiation.

*Some Further Examples*.
The following further examples, fully worked out,
will enable you to master completely the process of
differentiation as applied to ordinary algebraical expressions,
and enable you to work out by yourself the
examples given at the end of this chapter.

(1) Differentiate $y = \dfrac{x^5}{7} - \dfrac{3}{5}$.

$\dfrac{3}{5}$ is an added constant and vanishes (see here).

We may then write at once \[ \frac{dy}{dx} = \frac{1}{7} × 5 × x^{5-1}, \\ \text{or}\; \frac{dy}{dx} = \frac{5}{7} x^4. \]

(2) Differentiate $y = a\sqrt{x} - \dfrac{1}{2}\sqrt{a}$.

The term $\dfrac{1}{2}\sqrt{a}$ vanishes, being an added constant; and as $a\sqrt{x}$, in the index form, is written $ax^{\frac{1}{2}}$, we have \[ \frac{dy}{dx} = a × \frac{1}{2} × x^{\frac{1}{2}-1} = \frac{a}{2} × x^{-\frac{1}{2}}, \\ \text{or}\; \frac{dy}{dx} = \frac{a}{2\sqrt{x}}. \]

(3) If $ay + bx = by - ax + (x+y)\sqrt{a^2 - b^2}$, find the differential coefficient of $y$ with respect to $x$.

As a rule an expression of this kind will need a little more knowledge than we have acquired so far; it is, however, always worth while to try whether the expression can be put in a simpler form.

First we must try to bring it into the form $y = {}$ some expression involving $x$ only.

The expression may be written \[ (a-b)y + (a + b)x = (x+y) \sqrt{a^2 - b^2}. \]

Squaring, we get \[ (a-b)^2 y^2 + (a + b)^2 x^2 + 2(a+b)(a-b)xy = (x^2+y^2+2xy)(a^2-b^2), \] which simplifies to \begin{align*} (a-b)^2y^2 + (a+b)^2 x^2 &= x^2(a^2 - b^2) + y^2(a^2 - b^2); \\ \text{ or}\; [(a-b)^2 - (a^2 - b^2)]y^2 &= [(a^2 - b^2) - (a+b)^2]x^2, \\ \text{ that is}\; 2b(b-a)y^2 &= -2b(b+a)x^2; \end{align*} hence \[ y = \sqrt{\frac{a+b}{a-b}} x \quad\text{and}\quad \frac{dy}{dx} = \sqrt{\frac{a+b}{a-b}}. \]

(4) The volume of a cylinder of radius $r$ and height $h$ is given by the formula $V = \pi r^2 h$. Find the rate of variation of volume with the radius when $r = 5.5$ in. and $h=20$ in. If $r = h$, find the dimensions of the cylinder so that a change of $1$ in. in radius causes a change of $400$ cub. in. in the volume.

The rate of variation of $V$ with regard to $r$ is \[ \frac{dV}{dr} = 2 \pi r h. \]

If $r = 5.5$ in. and $h=20$ in. this becomes $690.8$. It means that a change of radius of $1$ inch will cause a change of volume of $690.8$ cub. inch. This can be easily verified, for the volumes with $r = 5$ and $r = 6$ are $1570$ cub. in. and $2260.8$ cub. in. respectively, and $2260.8 - 1570 = 690.8$.

Also, if \[ r=h,\quad \dfrac{dV}{dr} = 2\pi r^2 = 400\quad \text{and}\quad r = h = \sqrt{\dfrac{400}{2\pi}} = 7.98 \text{in}. \]

(5) The reading $\theta$ of a Féry's Radiation pyrometer is related to the Centigrade temperature $t$ of the observed body by the relation \[ \dfrac{\theta}{\theta_1} = \left(\dfrac{t}{t_1}\right)^4, \] where $\theta_1$ is the reading corresponding to a known temperature $t_1$ of the observed body.

Compare the sensitiveness of the pyrometer at temperatures $800°$C., $1000°$C., $1200°$C., given that it read $25$ when the temperature was $1000°$C.

The sensitiveness is the rate of variation of the reading with the temperature, that is $\dfrac{d\theta}{dt}$. The formula may be written \[ \theta = \dfrac{\theta_1}{t_1^4} t^4 = \dfrac{25t^4}{1000^4}, \] and we have \[ \dfrac{d\theta}{dt} = \dfrac{100t^3}{1000^4} = \dfrac{t^3}{10,000,000,000}. \]

When $t=800$, $1000$ and $1200$, we get $\dfrac{d\theta}{dt} = 0.0512$, $0.1$ and $0.1728$ respectively.

The sensitiveness is approximately doubled from $800°$ to $1000°$, and becomes three-quarters as great again up to $1200°$.

Differentiate the following: [2] (1) $y = ax^3 + 6$. (2) $y = 13x^{\frac{3}{2}} - c$.

(3) $y = 12x^{\frac{1}{2}} + c^{\frac{1}{2}}$. (4) $y = c^{\frac{1}{2}} x^{\frac{1}{2}}$.

(5) $u = \dfrac{az^n - 1}{c}$.

(6) $y = 1.18t^2 + 22.4$.

Make up some other examples for yourself, and try your hand at differentiating them.

(7) If $l_t$ and $l_0$ be the lengths of a rod of iron at the temperatures $t°$ C. and $0°$ C. respectively, then $l_t = l_0(1 + 0.000012t)$. Find the change of length of the rod per degree Centigrade.

(8) It has been found that if $c$ be the candle power of an incandescent electric lamp, and $V$ be the voltage, $c = aV^b$, where $a$ and $b$ are constants.

Find the rate of change of the candle power with the voltage, and calculate the change of candle power per volt at $80$, $100$ and $120$ volts in the case of a lamp for which $a = 0.5×10^{-10}$ and $b=6$.

(9) The frequency $n$ of vibration of a string of diameter $D$, length $L$ and specific gravity $\sigma$, stretched with a force $T$, is given by \[ n = \dfrac{1}{DL} \sqrt{\dfrac{gT}{\pi\sigma}}. \]

Find the rate of change of the frequency when $D$, $L$, $\sigma$ and $T$ are varied singly.

(10) The greatest external pressure $P$ which a tube can support without collapsing is given by \[ P = \left(\dfrac{2E}{1-\sigma^2}\right) \dfrac{t^3}{D^3}, \] where $E$ and $\sigma$ are constants, $t$ is the thickness of the tube and $D$ is its diameter. (This formula assumes that $4t$ is small compared to $D$.)

Compare the rate at which $P$ varies for a small change of thickness and for a small change of diameter taking place separately.

(11) Find, from first principles, the rate at which
the following vary with respect to a change in
radius:
(*a* ) - the circumference of a circle of radius $r$;

(*b* ) - the area of a circle of radius $r$;

(*c* ) - the lateral area of a cone of slant dimension $l$;

(*d* ) - the volume of a cone of radius $r$ and height $h$;

(*e* ) - the area of a sphere of radius $r$;

(*f* ) - the volume of a sphere of radius $r$.

(12) The length $L$ of an iron rod at the temperature $T$ being given by $L = l_t\bigl[1 + 0.000012(T-t)\bigr]$, where $l_t$ is the length at the temperature $t$, find the rate of variation of the diameter $D$ of an iron tyre suitable for being shrunk on a wheel, when the temperature $T$ varies.

(1) $\dfrac{dy}{dx} = 3ax^2$.

(2) $\dfrac{dy}{dx} = 13 × \frac{3}{2}x^{\frac{1}{2}}$.

(3) $\dfrac{dy}{dx} = 6x^{-\frac{1}{2}}$.

(4) $\dfrac{dy}{dx} = \dfrac{1}{2}c^{\frac{1}{2}} x^{-\frac{1}{2}}$.

(5) $\dfrac{du}{dz} = \dfrac{an}{c} z^{n-1}$.

(6) $\dfrac{dy}{dt} = 2.36t$.

(7) $\dfrac{dl_t}{dt} = 0.000012×l_0$.

(8) $\dfrac{dC}{dV} = abV^{b-1}$, $0.98$, $3.00$ and $7.47$ candle power per volt respectively.

(9) \[ \dfrac{dn}{dD} = -\dfrac{1}{LD^2} \sqrt{\dfrac{gT}{\pi \sigma}}, \dfrac{dn}{dL} = -\dfrac{1}{DL^2} \sqrt{\dfrac{gT}{\pi \sigma}}, \\ \dfrac{dn}{d \sigma} = -\dfrac{1}{2DL} \sqrt{\dfrac{gT}{\pi \sigma^3}}, \dfrac{dn}{dT} = \dfrac{1}{2DL} \sqrt{\dfrac{g}{\pi \sigma T}}. \]

(10) \[ \dfrac{\text{Rate of change of $P$ when $t$ varies}} {\text{Rate of change of $P$ when $D$ varies}} = - \dfrac{D}{t} \]

(11) $2\pi$, $2\pi r$, $\pi l$, $\frac{2}{3}\pi rh$, $8\pi r$, $4\pi r^2$.

(12) $\dfrac{dD}{dT} = \dfrac{0.000012l_t}{\pi}$.
